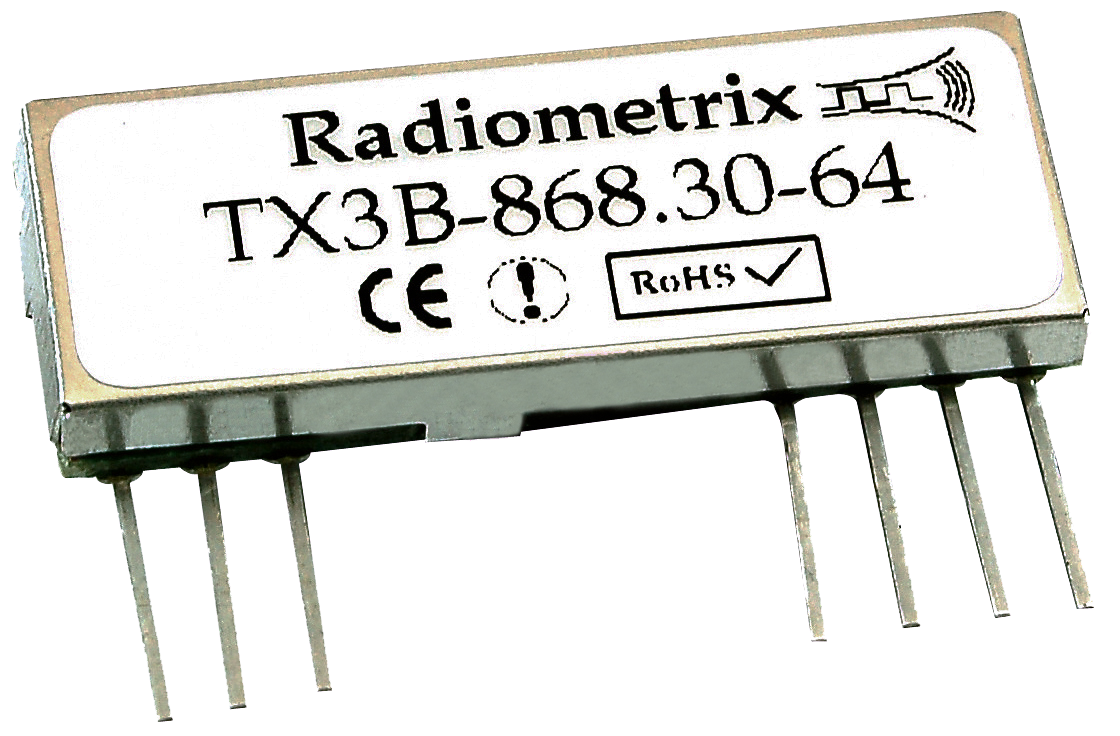

TX3B

869MHz Wide Band FM Transmitter

The TX3B radio transmitter module is an enhanced high power replacement for the European version TX3A-869-64 transmitter.
Two frequency variants are available in the European unlicensed band, one with 5mW RF power with no duty cycle restriction other with 8mW RF power with 1% duty cycle restriction.
Available for operation in the 868-870MHz band in Europe, it combines full screening with internal filtering to ensure EMC compliance by minimising spurious radiation and susceptibility.

Key Facts

Functionality

, ,

Band

Frequency

Channel

Frequency

,

RF Power

RF Power

Data Rate

, , ,

Data Rate

, , ,

Operational Range

, ,

Operational Range

Country

, , , ,

Two way

Data sheet

Features

  • Complies with European harmonised standards EN 300 220 and EN 301 489
  • 869.85MHz 5mW 100% duty cycle or 868.30MHz 8mW 1% duty cycle
  • RF power output: +9dBm (8mW) on 868.30MHz, +7dBm (5mW) on 869.85MHz
  • Data rates up to 64kbps
  • Crystal controlled PLL FM transmit circuitry
  • Supply: 2.9V - 16V @ 14mA (8mW)
  • 32 x 12.5 x 3.8mm



Applications

  • Tracing and asset tracking systems
  • Handheld terminals
  • Meter reading systems
  • Industrial telemetry and telecommand
  • Data loggers
  • In-building environmental monitoring and control
  • Security and fire alarms
  • Vehicle data up/download
