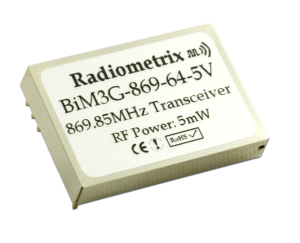

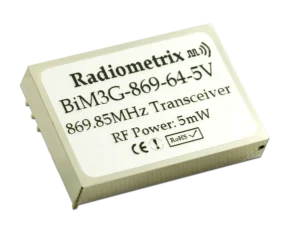

The BIM2/3G data radio module is a PLL synthesiser based miniature PCB mounting UHF radio transceiver which enable the simple implementation of a wireless data link at up to 128 kbps at distances up to 75 metres in-building and 300 metres open ground.

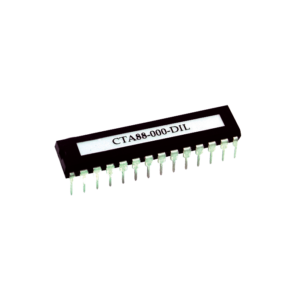

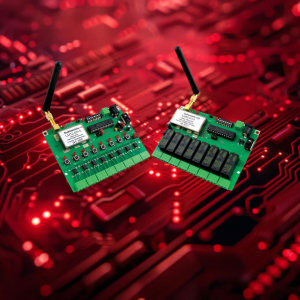

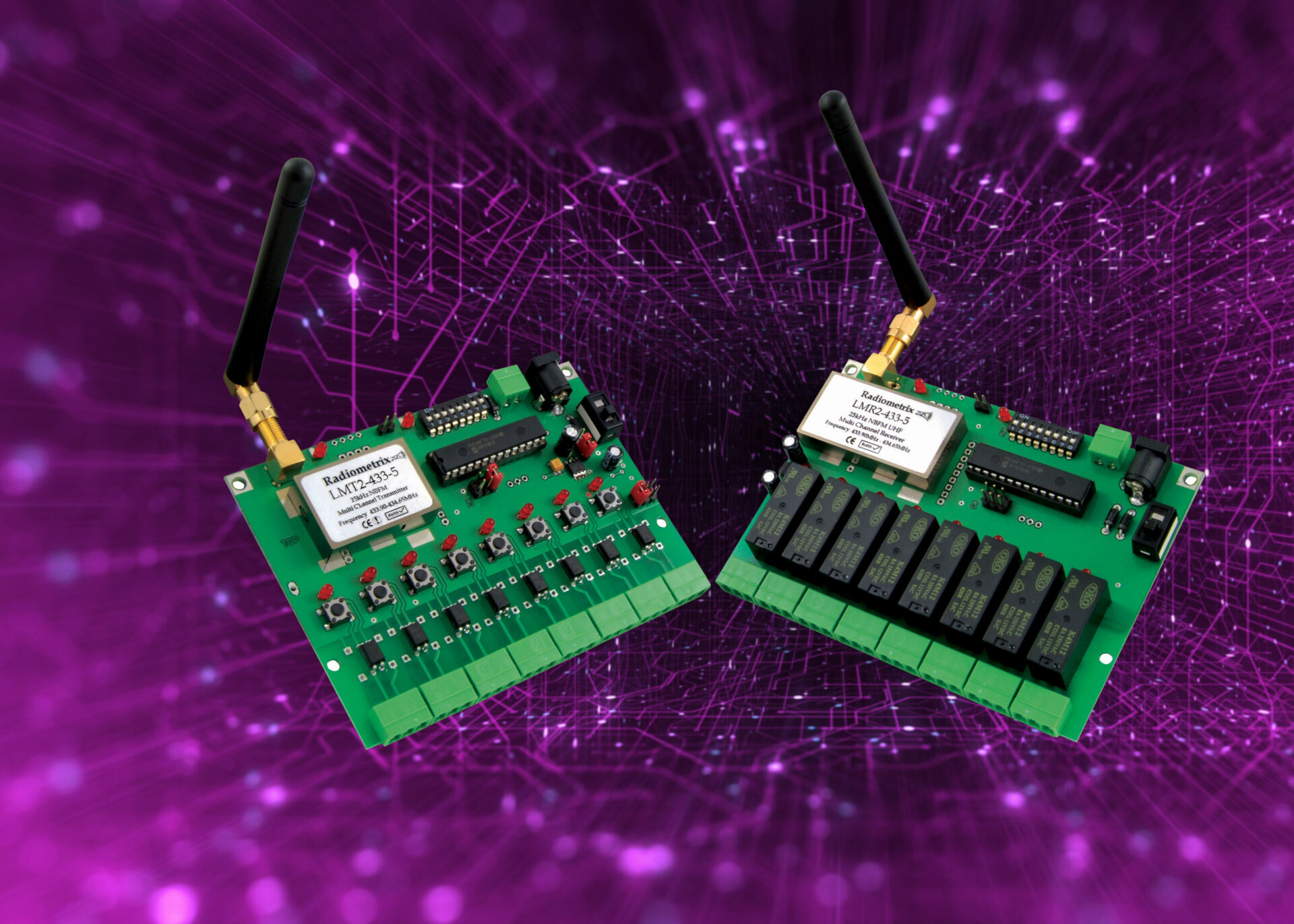

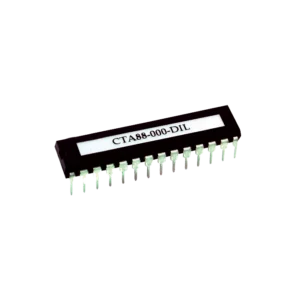

CTA88 is an 8 bit address, 8 bit data encoder and decoder combined in a single IC. This device is intended to be used with ISM band telemetry modules and can be operated in either Encode or Decode mode.

CTA88 uses 1kbps differential Manchester bit balancing with preamble and checksum. It permits a simple, one way link to be established, for simple remote control applications, with a minimum of effort and no customer software input. CTA88 is available in 28pin SO and DIL packages.

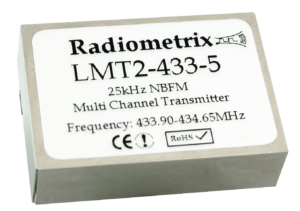

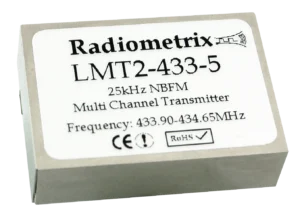

The LMT2 transmitter and LMR2 receiver modules offer a multi channel, low power, and reliable data link. This makes the LMT2/LMR2 pair ideally suited to those low power applications where existing wideband modules have insufficient range, or where low cost multi-channel operation is needed without compromising on RF specification or regulatory requirement

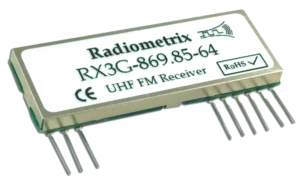

The RX3G is a PLL synthesiser based miniature PCB mounting UHF radio data receiver. With the matching TX3B-869-64 transmitters, RX3G allows the simple implementation of wireless data links at speeds up to 64kbps and distances up to 75 metres in-building or 300 metres over open ground.

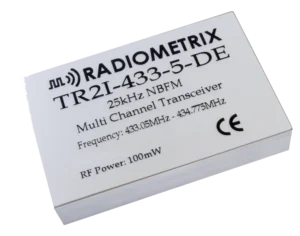

The TR2M transceiver module offers a low power, reliable data link in an industry-standard pin out and footprint. This makes the TR2M ideally suited to those low power applications where existing wideband modules have insufficient range, or where multi-channel operation is needed. Two versions are available, covering the 458.5-459.1MHz UK band (at 100mW) and the European 433.05-434.79MHz band (at 10mW)

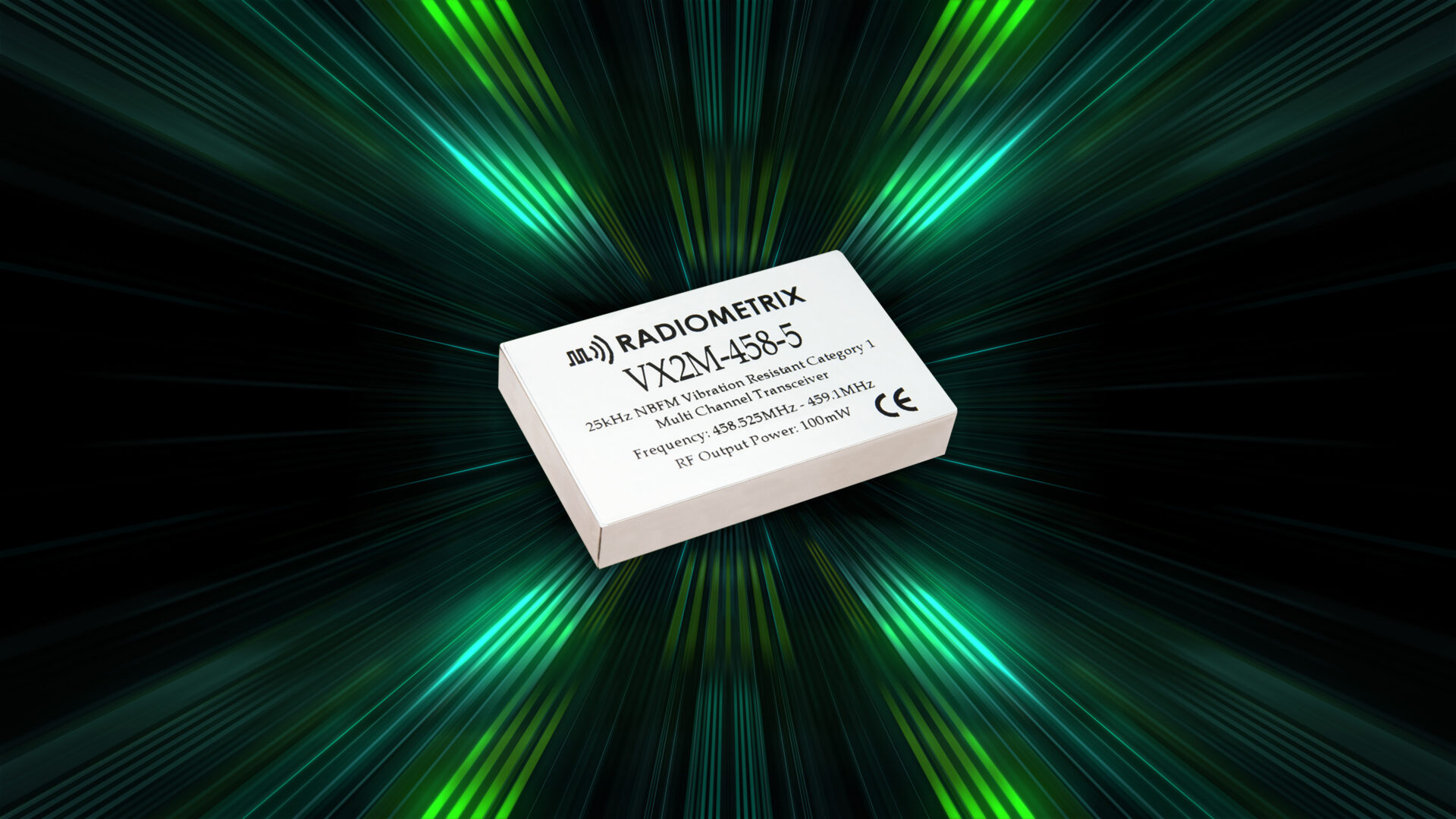

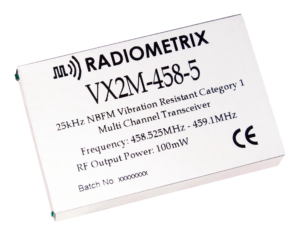

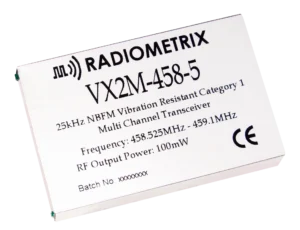

VX2M is a 400MHz band transceiver conforming to the Radiometrix TR2M pinout. It uses a sophisticated combination of techniques to produce a very robust device with excellent resistance to vibration.It meets the ETSI Category 1 high performance receiver specification to be used where the operation of a SRD may have inherent safety of human life implications.It retains all the pin-functions of the parent TR2M (including noise operated squelch/carrier detect and separate digital/analogue inputs and outputs). It also supports the same internal i1200 modem as the TR2M.
