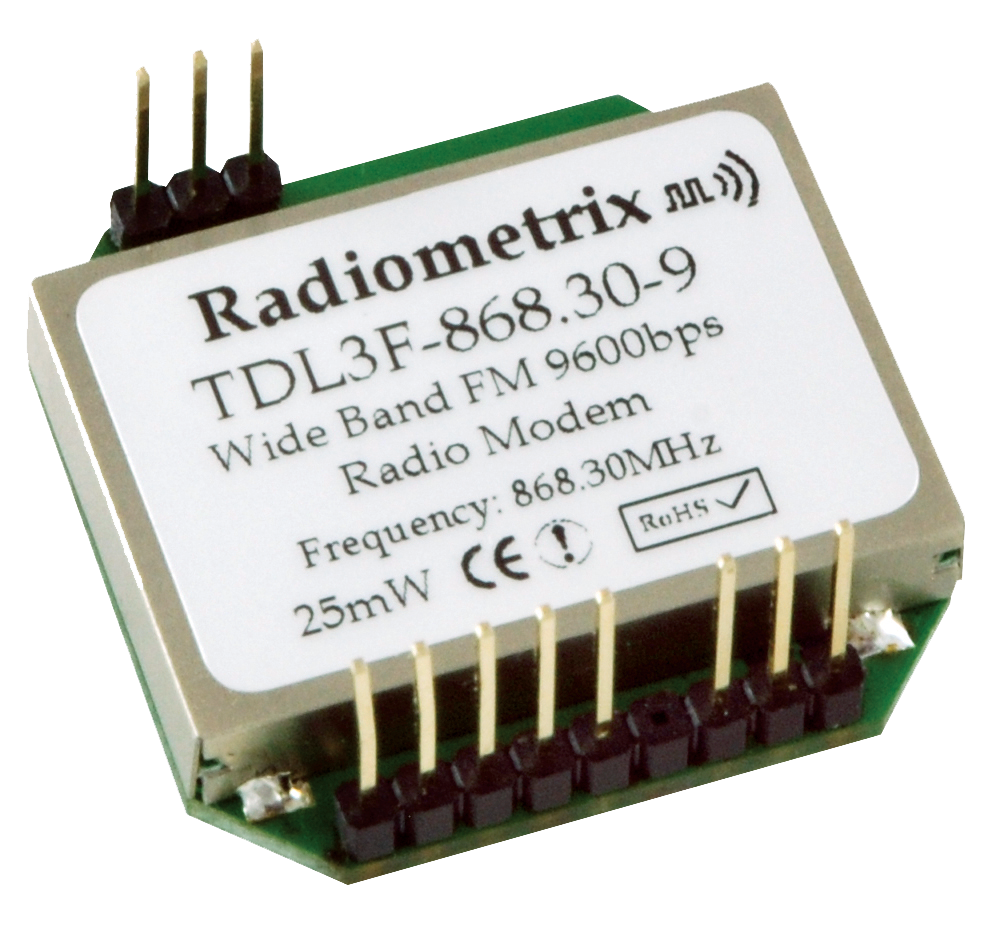

TDL3F

869/915MHz band Radio modem

A TDL3F is a single channel, 869 or 915MHz wideband, transparent data link. It has a TDL2A pin out (and firmware), but uses a BiM3 series radio module. TDL3F acts as a transparent serial cable to attached host. DWA3 is an intermediate level OEM radio modem which is in between a raw FM radio module like BiM3A and a sophisticated OEM radio modem like RPM3. It takes care of preamble, synchronisation, bit balancing and error checking along with automatic noise squelching.

Key Facts

Functionality

, ,

Band

Frequency

,

Channel

Frequency

, ,

RF Power

RF Power

Data Rate

Data Rate

Operational Range

, , ,

Operational Range

Country

, , , ,

Two way

Data sheet

Features

  • Conforms to EN 300 220-3 and EN 301 489-3
  • Crystal controlled PLL FM circuitry for both Tx and Rx
  • Low noise synthesiser / VCO
  • Built-in ceramic patch antenna
  • SAW front-end filter
  • Single conversion superhet
  • Serial modem baud rate at 9600bps (half-duplex)
  • Addressable point-to-point

Applications

  • PDAs, organisers & laptops
  • Handheld / portable terminals
  • EPOS equipment, barcode scanners
  • In-building environmental monitoring and control
  • Remote data acquisition system, data logging
  • Fleet management, vehicle data acquisition
