Choice of frequency band can really make a difference

When choosing a module, the typical user starts with the simple requirements at the interface (data rate, power supply);considers  physical  size  limitations  and  price;  worries  about  the  claimed  link  range;
and  takes  a  random  stab  at  the catalogue.

But there is another parameter which influences all the others and which might best be considered first: the operating frequency band of the module.

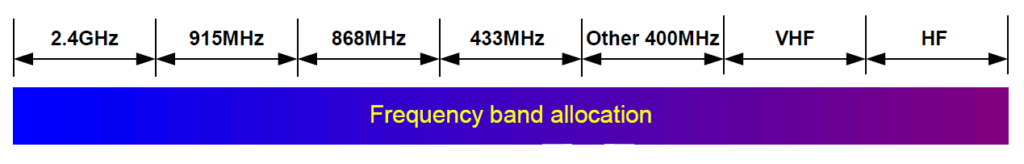

There is a wide range of frequency bands where ISM band wireless modules are used. Some frequency allocations are available worldwide or across an entire continent, while others are specific to one particular country. Legal transmit power levels, operating modes and usage restrictions are depressingly non-uniform. However, a little examination of the physics of radio transmission reveals certain basic characteristics that should influence the selection of a particular operating band:

 2.4GHz

This is definitely the most “fashionable ” band currently in the advertising press. This band is dominated by “defined protocol ” short—range networks like Zigbee, Bluetooth and their various imitators and lookalikes (Wibree, Zwave, Nanotron and others).

Merits: Truly a worldwide allocation, with materially similar regulations for its use in almost every country (although fine details do vary).The allocation is wide (over 80MHz), which encourages wide bandwidth, high data-rate systems. There is a great deal of heavily marketed available silicon, making the radio design easier. And, the aerials are tiny.

Problems: Path loss per meter is high compared to lower frequencies, and penetration of building materials (and even rain!) is poor, so this is a short-ranged allocation, even ranges over 10m can be difficult to reliably achieve. Band congestion is serious, as this band is shared with WiFi radio-LANs.

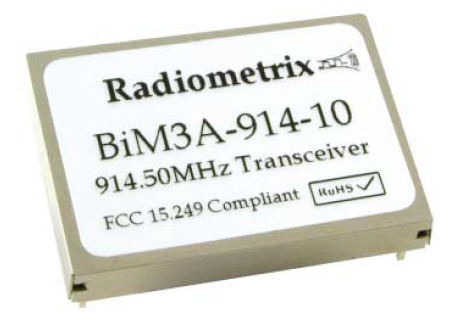

 915MHz

In  the  US  (also  Canada  and  limited  usage  in  Australia/New  Zealand).This is a fairly generous allocation (26MHz total)with tightly  defined operating modes (compliant spread spectrum radios are allowed  up to 1W transmit power, fixed frequency units are restricted to less than  1mW).

Merits: High-end modules are capable of good range (up to 1km),  while simple units can offer the size/cost benefits of “European ”  type modules. Aerials are small.

Problems:  Limited  area  of  use,  within  which  the  FCC  approval  procedures can be difficult. Even well designed spread spectrum modules tend to have long set-up/sync periods and high power consumption. Little penetration of this band by “network ”radios.



868MHz

A band harmonised throughout the European Union. To improve band useability, specific areas of the band are assigned to specific applications (fire alarms, security) and in certain sub-bands there are limits to transmit duty cycle or operating mode (“Listen Before Talk ” or LBT operations). Transmit power varies from 5mW to 500mW.

Merits:  Small  aerials,  reasonable  range.  Relatively  little  band  congestion  (helped  by  the  sub-band allocations).Wide range of modules available from long range 500mW units to very simple short ranged 1mW devices

Problems: Complicated band plan. Zigbee units on 868MHz are limited to a single channel. Not as wide a range of modules as for the 433MHz band.

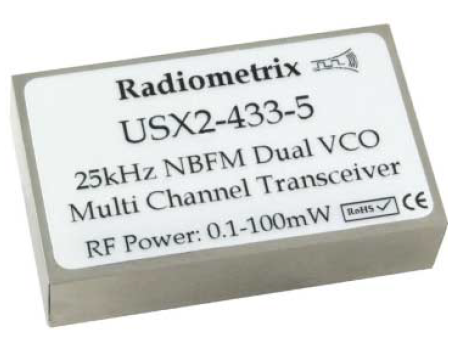

433MHz

Probably  the  widest  used  ISM  band,  the  433MHz  band  is  used  throughout Europe and much of the rest of the world also (excluding  the US).

Both,  simple  wideband  units  and  sophisticated  longer  ranged  narrowband radios, are offered and in many regions there is simple  band planning and duty cycle restrictions.

Merits:  Extremely  wide  choice  of  modules  from  a  great  many  manufacturers. Integrated circuit solutions are also available, for  even  lower  costs.  Lower  path  loss  than  868MHz  band  -so  less  transmit power for the same range.

Problems:  Low  power  (10mW,or  25mW  in  Australia).  Band  is  overcrowded in some areas and there ’s some very low quality hardware on offer, which can make selecting a device hazardous. Aerials tend to be bigger (a 1/4 wavelength monopole is 16cm long). Range rarely exceeds 500m.

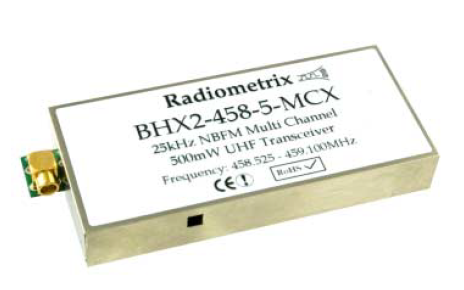

Other 400MHz

In addition to the 433MHz allocation, many nations retain other 400MHz band allocations, such as the 458MHz band in the UK, or 448MHz in the Czech Republic. Some nations specify licensed operation, for instance “part 90 ” operation in the US.

These allocations are usually intended for high reliability industrial telemetry and telecommand, so higher transmit powers (up to 500mW)are frequently permitted  and  only  narrowband  (25KHz  or  12.5KHz)  radios  are  usually permitted. Aerial sizes are similar to 433MHz.

Merits: Long range of several km. High quality, reliable, equipment, some units even meet PMR standards. Uncrowded band allocations.

Problems: Limited choice of expensive modules. Frequency allocations are specific to particular countries. Channel bandwidths limit data rates to 10kbit/s or less. Relatively few channels allocated.

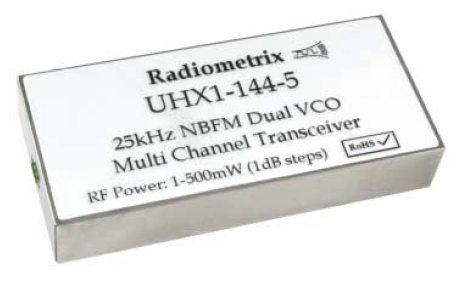

VHF bands

There are no worldwide (or even continent-wide) VHF allocations  - although  a  169MHz  allocation  is  slowly  being  introduced  across  Europe.

Where they can be used, VHF telemetry radios are associated with  long  range  applications.  Typically,  these  modules  are  used  for  environmental monitoring, agricultural process control, remote meter  reading and asset tracking. Almost all VHF modules are narrowband.

Merits: 5-10km range is easily achievable (lower path loss than  UHF  bands).  Modules  tend  to  be  cheaper  than  comparable

performance UHF examples. Good penetration into buildings; low power consumption.

Problems: Limited, country specific, frequency allocations; low data rates; large aerials. No “single chip radio ” silicon has yet been released.

HF bands

Typically the 27MHz (and 40MHz) bands have so far been limited to model/toy control and very low end short-range data  link  applications,  such  as  wireless  keyboards  –  although  Bluetooth  is  encroaching  on  this  market.  A  few operators use them for agricultural process control.

Owing to environmental variations, the propagation of these much lower frequency signals can occasionally be highly unpredictable.

Merits: Very simple, very cheap hardware. Some countries permit high powers (4W in the US). Allocations exist in almost all countries

Problems: Very large aerials are needed to achieve anything but short range operation. Highly overcrowded bands, especially the 27MHz allocation, shared with CB and model control. Low data rates.

What I have detailed here is far from exhaustive, but combined with a little investigation into available products it ought to make choosing a radio module a little more scientific and a little less dependant on extravagant advertising claims.

Good luck!

Note:   Path loss is related to frequency, being proportional to 10log(1/f ^2).

This means (aerial gain, transmit power and rx sensitivity being the same) that 10mW at VHF (173MHz), 80mW at 458MHz, 250mW at 869MHz and 2W at 2.4GHz would exhibit similar ranges.

Receiver sensitivity, hence range, is also related to channel bandwidth, and as such data rate. Higher speed links have shorter ranges for the same tx power.

For further information, refer to: http://www.ofcom.org.uk/radiocomms/ifi/licensing/classes/rlans/short/ http://www.ofcom.org.uk/radiocomms/ifi/tech/interface_req/uk2030.pdf (refer to table 3.1 especially).

By Myk Dormer for Radiometrix Ltd

First published in Electronics World Magazine.
